Industrial Rubber Sheet

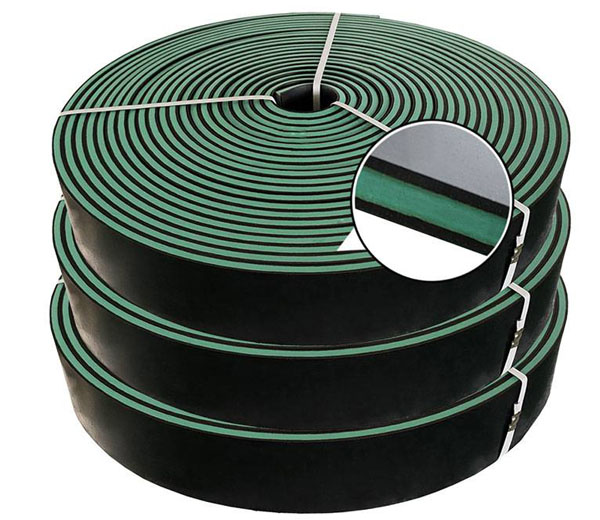

Sandwich Rubber Sheet
Description
Features: Unique three layers combination, excellent resistant to dry abrasion and high impact. Black outer layer providing scraping and cleaning effect, middle damping layer provides extra flexible and impact resistance. The black outer layer protects the softer green middle layer to provide a durable and hard wearing solution.
Applications: Sandwich Rubber Sheet mainly used in the mining and industry. It can be used as a belt cleaning device on either side conveyor belt to wipe off dust and wet slurry’s to avoid carry back and build up on rollers. Apply to: sand and gravel quarries, aggregate and cement industries, foundries, mechanical engineering, concrete plan.
|
Color |
|
Black/Green/Black |
|
Polymer Type |
|
NR/SBR |
|
Hardness (Shore A) |
ASTM D2240 |
60/40/60 |
|
Tensile Strength (Mpa) |
ISO37 |
15MPA |
|
Elongation (%) |
ISO37 |
≥400 |
|
Abrasion Resistance at 5N (mm3) |
ISO 4649:2017 |
200/120/200 |
|
Specific Gravity (g/cm3) |
ASTM D297 |
1.15+/-0.05 |
|
Operating Temperature (℃) |
ISO815-1 |
-40 ~ +100 |
|
Surface |
|
Both sides smooth |
|
Available Size |
|
6mm~50mm |
|
Width (m) |
|
0.6m~2m |
|
Length (m) |
|
1m~20m |
