Skirting Rubber

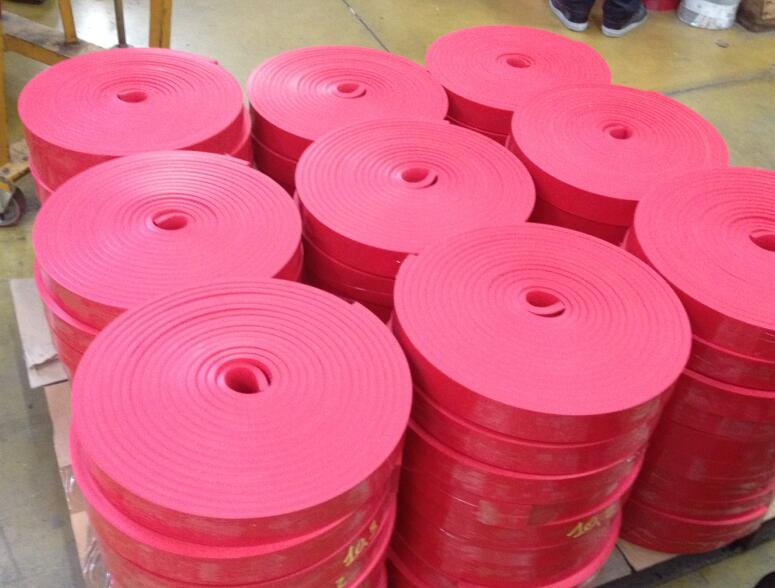

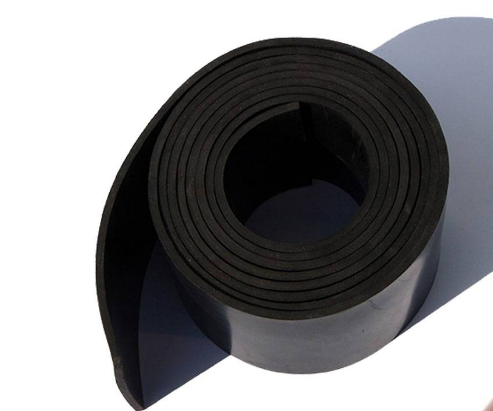

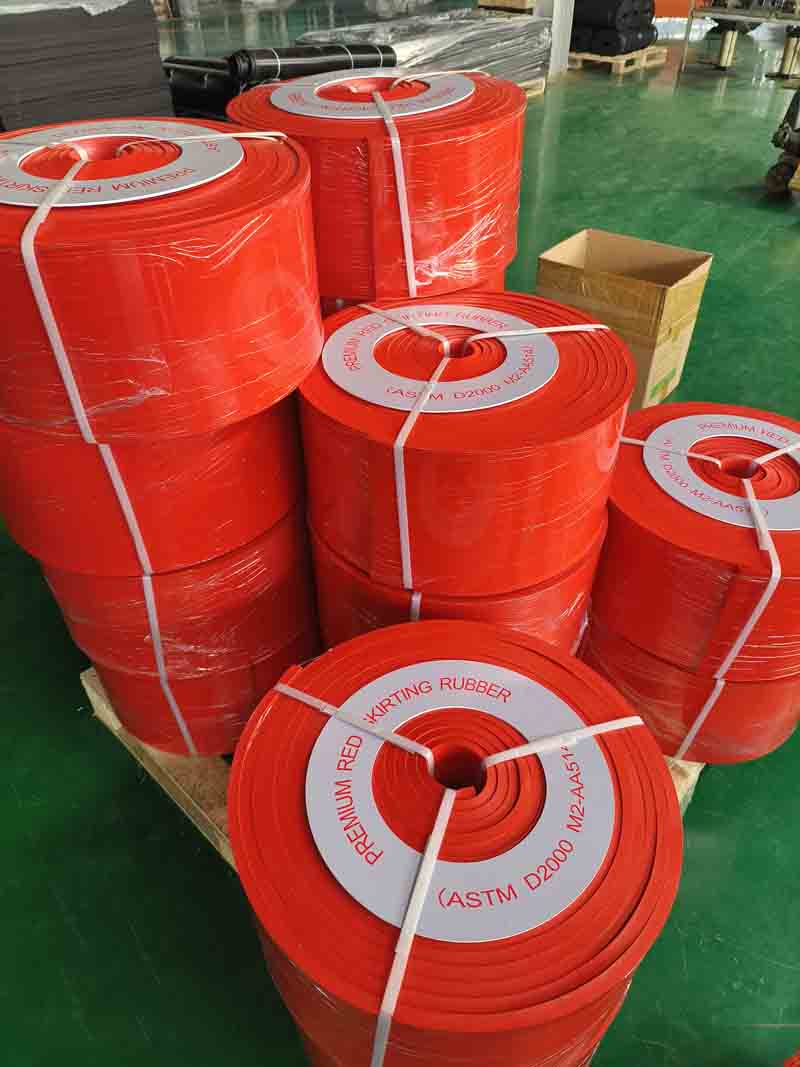

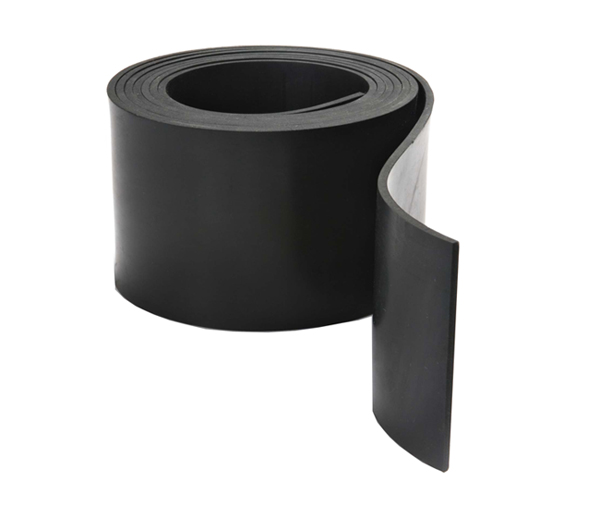

Skirting Rubber Board
Description
The skirting rubber board is a sealing component that is commonly used in conveyor systems to prevent materials from spilling or escaping from the sides of the conveyor belt. It can also help to prevent dust and other fine particles from escaping from the conveyor system. This can help to improve the overall cleanliness and safety of the work environment.
|
Product Name |
Skirting Rubber Board |
||||||||
|
Specific Gravity (g/cm3) |
Hardness (Shore A) |
Tensile Strength (MPa) |
Elongation (%) |
Tear Resistance (N/mm) |
Abrasion Resistance at 5N (mm3) |
Compression Set after 22h at 70℃ (%) |
Thickness (mm) |
Width(m) |
Work Temperature (℃) |
|
1.25 |
60+/-5 |
15 |
400 |
35 |
200 |
35 |
1 ~ 50 |
0.1 ~ 2 |
-40 ~ +90 |
|
1.30 |
60+/-5 |
10 |
350 |
30 |
250 |
40 |
1 ~ 50 |
0.1 ~ 2 |
-40 ~ +90 |
|
1.35 |
60+/-5 |
8 |
300 |
25 |
300 |
45 |
1 ~ 50 |
0.1 ~ 2 |
-40 ~ +90 |
|
1.45 |
60+/-5 |
6 |
250 |
20 |
350 |
50 |
1 ~ 50 |
0.1 ~ 2 |
-40 ~ +90 |
|
1.50 |
60+/-5 |
4 |
200 |
18 |
500 |
60 |
1 ~ 50 |
0.1 ~ 2 |
-40 ~ +90 |
|
Delivery Time |
1*20GP Container 15-20days after received deposit |
||||||||
|
Loading Port |
Xin’gang, Tianjin |
||||||||
|
Payment Term |
T/T 30% as deposit, T/T 70% against B/L copy. |
||||||||
